OEJN_FE_APP [APF E] Briefing Material | Hajj OPS: 2026

Covering

This section details all the necessary briefing materials for OEJN_FE_APP [APF E] during Hajj OPS: 2026

The full Standard Operating Procedures for OEJN_x_APP can be found here. However note that any information in this page supersedes any other information.

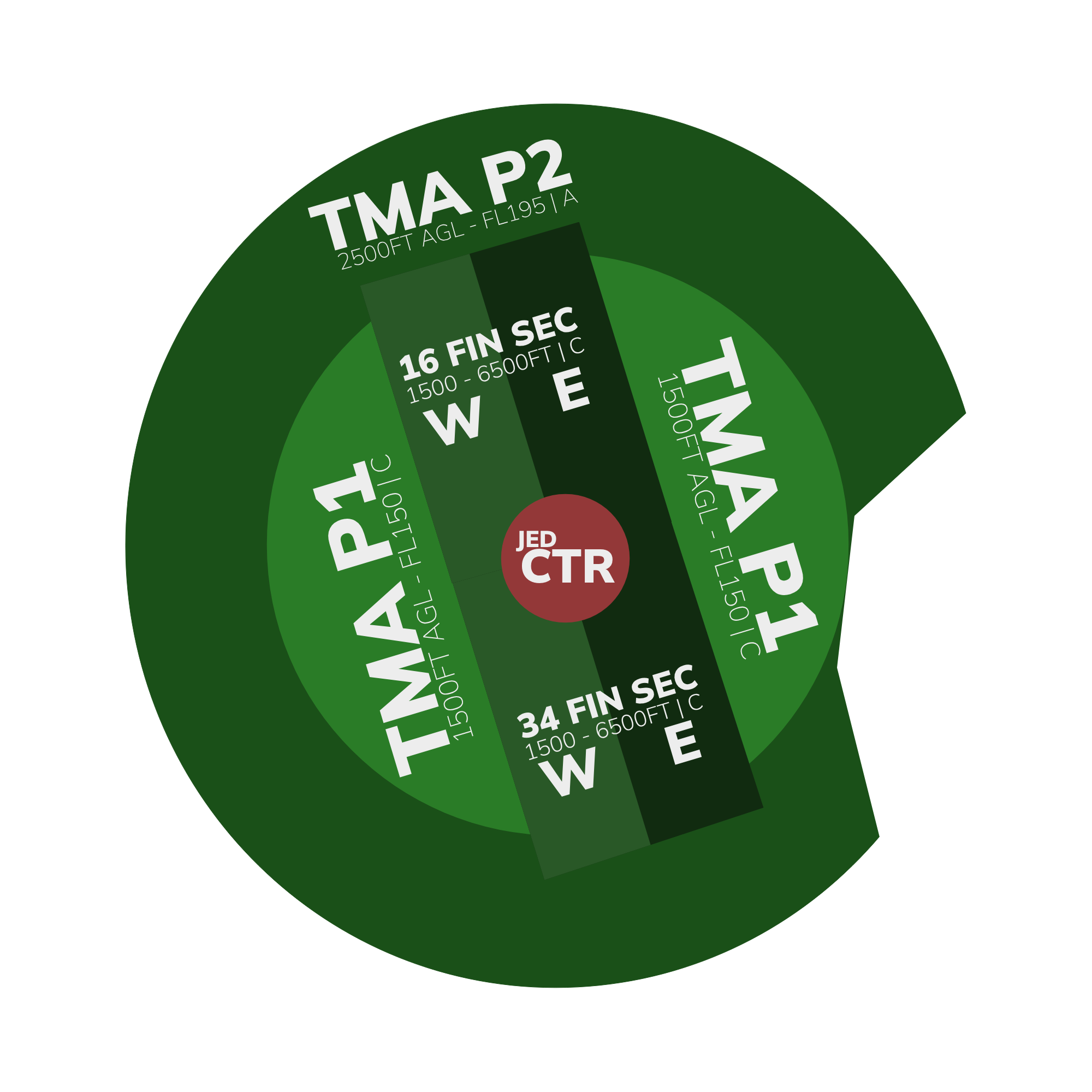

Designated Area of Responsibility

"Jeddah Final East" (OEJN_FE_APP) is responsible for handling all arrivals from the downwind leg landing on runway 16L/34R.


Notes

  • The separation minima within the Jeddah TMA is 5 nautical miles. If this cannot be achieved, a minimum vertical separation of 1,000 feet must be maintained.

  • On final approach, the lateral separation can be reduced to 3 NM.

  • Wake Turbulence Separation must be enforced under 6,000 feet.

  • After handoff from Jeddah Approach [APP 1], all aircraft should be descended onto odd altitudes. Below are the recommended altitudes:

  • 7,000 ft, 5,000 ft, 4,500 ft (to adhere to MRVA's), 4,000 ft (when intercept heading is given).

  • Controllers should be aware of the MRVA's. These can be found here

  • Independent Parallel Approaches (Mode 1) will be in use for Hajj OPS: 2026.

  • RWY 34R is the high side, with an establishing altitude of 4,000 ft.

  • Aircraft must not be descended below 4,000 ft prior to establishing with the localiser, otherwise this will be deemed a conflict.

  • The standard vector headings are below:

  • Base Leg - 250

  • Intercepting Vector - 310 (340 - 310)

  • When established, aircraft should be kept:

  • "180 knots maintain to 10 DME, 160 knots maintain to 4 DME."

  • "SVA123, contact Jeddah Tower, callsign only, 118.500."

Handoffs from Jeddah Approach [APP 1]

  • The tables below dictate the altitudes and fixes at which arrival traffic will be handed off to from Jedday Approach [APP 1]. These are to be strictly adhered to.
  • A minimum longitudinal spacing of 7 NM shall be targeted by APP 1.
  • The target speed for handoffs from APP 1 is 210 knots, with the maximum being 220 knots. This will be indicated in the tag.

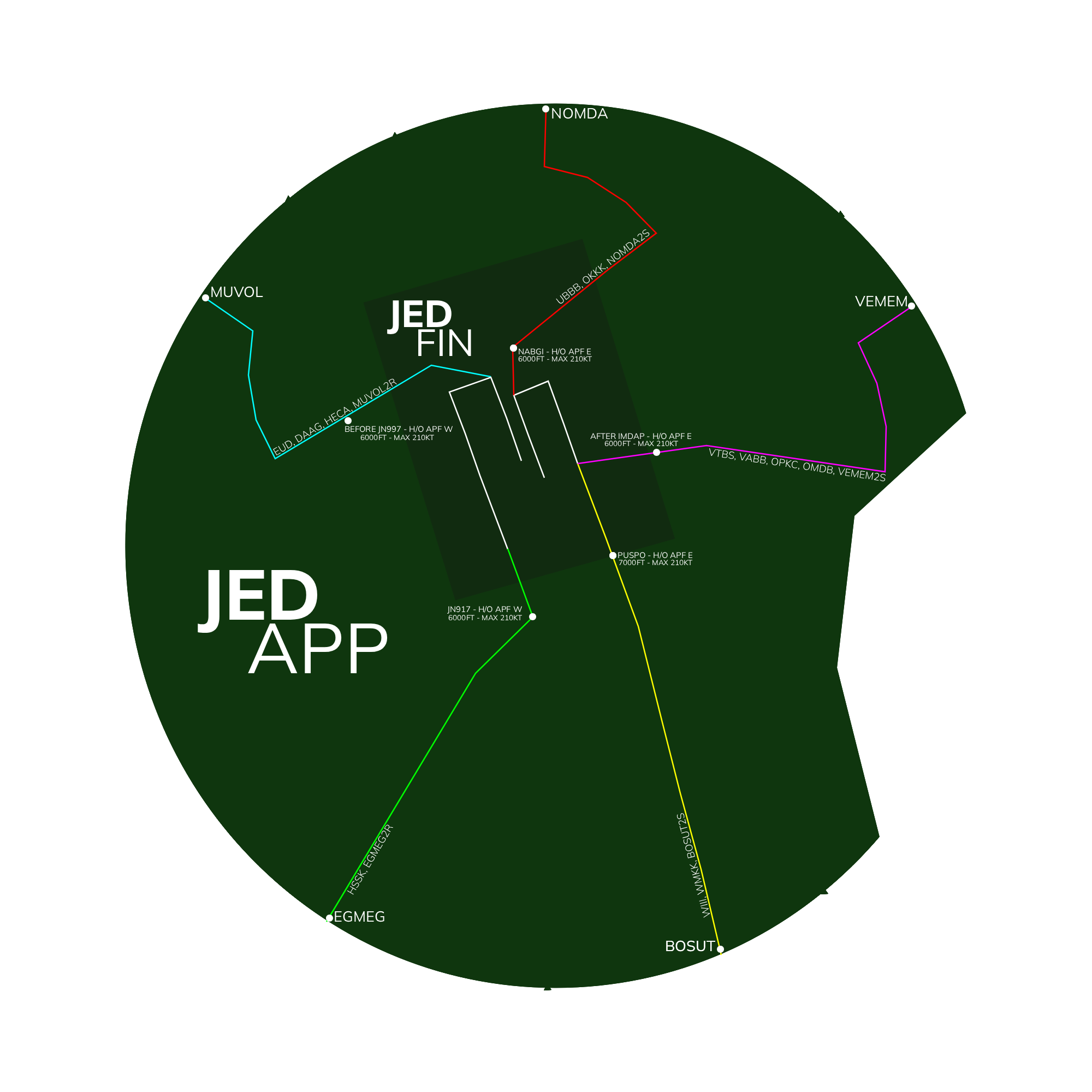

Runway 16L

Fix Altitude (ft)
NABGI 6,000
IMDAP 6,000
PUSPO 7,000

APF HO 16.png

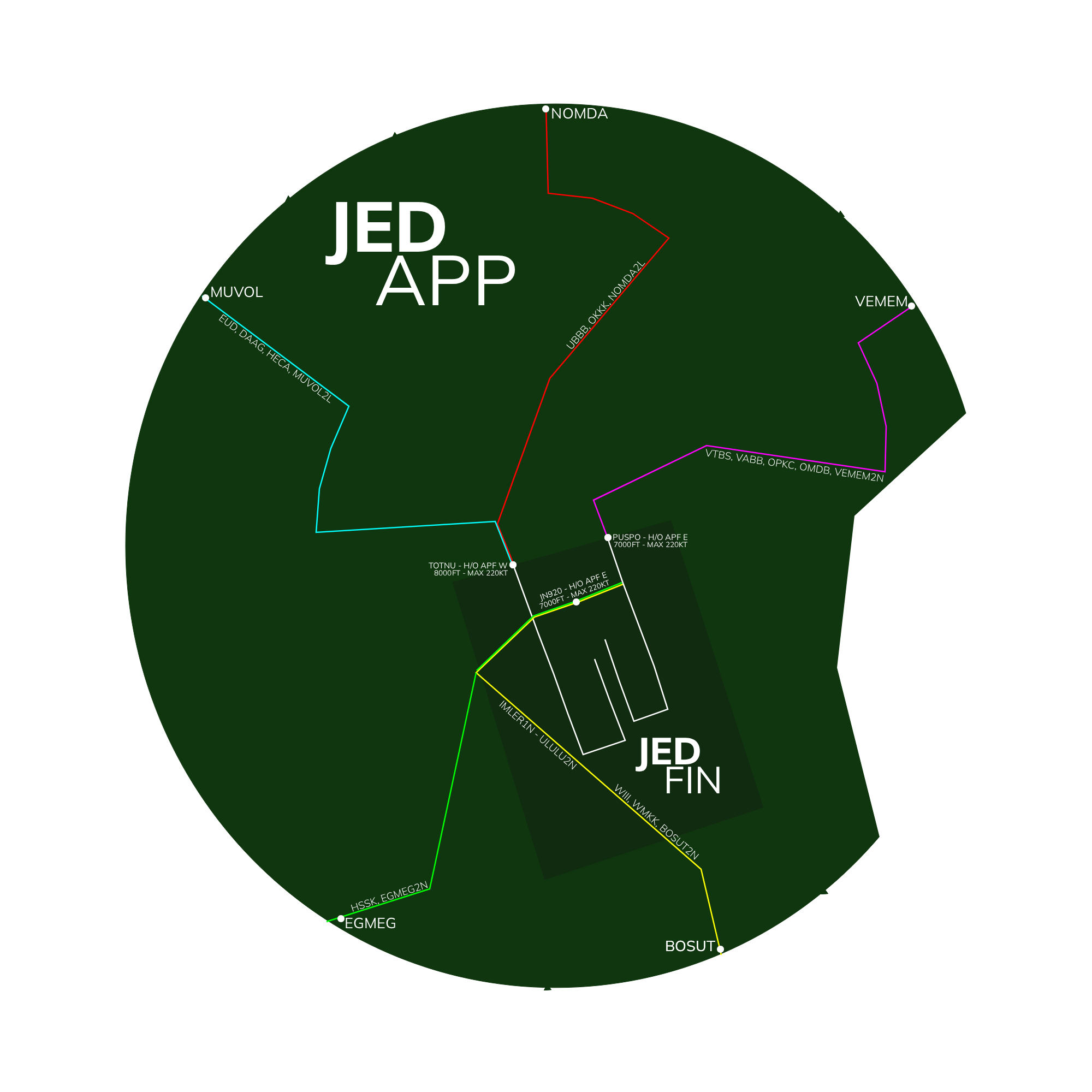

Runway 34R

Fix Altitude (ft)
PUSPO 7,000
JN920 7,000
